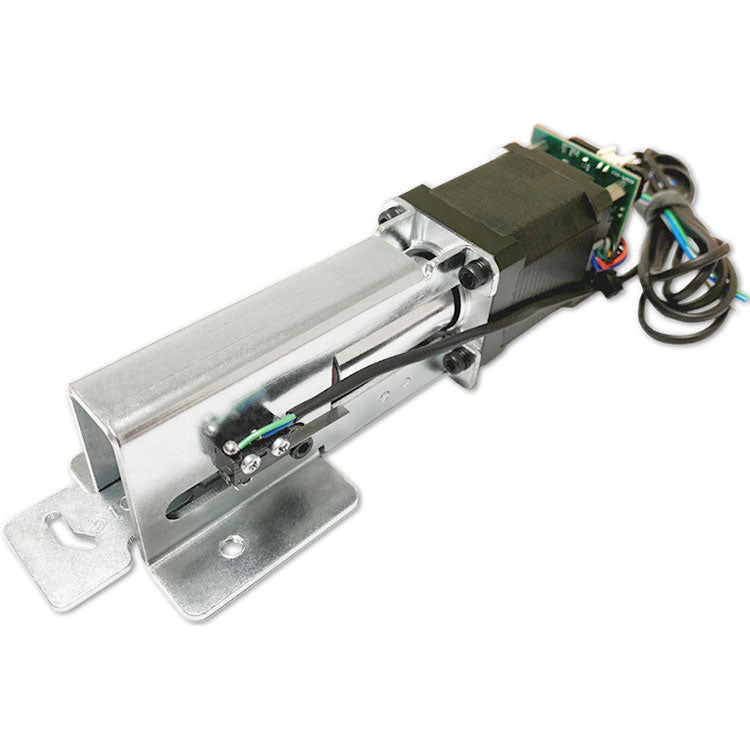

Command Access MLRK1-YAL6 Motorized Latch Retraction Kit — For Accentra (formerly Yale) 6000 Series (Field Install, UL, 3-Year Warranty)

Command Access MLRK1-YAL6 Motorized Latch Retraction Kit — For Accentra (formerly Yale) 6000 Series (Field Install, UL, 3-Year Warranty)

$495.00 USD
$495.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade Accentra/Yale 6000 Exit Devices to Motor-Driven Latch Retraction

The Command Access MLRK1-YAL6 is a field-install motorized latch retraction kit that converts Accentra (formerly Yale) 6000 Series exit devices from mechanical to electrified pullback while maintaining listings. Install in minutes, Built-in REX, and fine-tune with Push-to-Set (PTS). Powered by the MM4S Smart Module for onboard diagnostics and efficient power management. UL Listed and backed by a 3-year “no hassle” warranty.

Why installers choose MLRK1-YAL6

  • Fast, quiet, smooth & strong motor performance.
  • Drop-in field kit with minimal modification; quick wire raceway.
  • PTS one-touch post-install fine adjustment (≈ 1/4").
  • MM4S Smart Module with onboard diagnostics and audible feedback.
  • Standard-torque mode capable of pulling difficult/tall vertical-rod doors.
  • Electric dogging rated for continuous duty; auto re-engages if the pushpad is pulled.
  • Built-in REX for request-to-exit integration.
  • UL Listed with a 3-year warranty.

Compatibility

Works with all Accentra (formerly Yale) 6000 Series exit devices.

Specifications

Voltage Range 24–28 VDC (over-voltage protection: unit shuts down > 28 VDC)
Current (Standard) Peak ≈ 900 mA; Hold ≈ 215 mA
Control Module MM4S Smart Module with onboard diagnostics
Modes Standard-torque; energy-conscious yet capable for tough doors
PTS Adjustment ≈ 1/4″
Request-to-Exit Built-in REX
Wire Run Up to 300′ with 18 AWG
Cutdown Details 36″/48″ rails — 6.5″ filler plate required
Duty Rating Electric dogging rated continuous; auto re-engage if pushpad is pulled
Listings UL Listed
Warranty 3-Year “No Hassle” Warranty

Installer Notes

  • Confirm device series/handing and rail cut length before energizing.
  • Use a regulated 24 VDC supply sized for inrush; verify 24–28 VDC at the rail under load.
  • Route cabling to avoid pinch points; secure the raceway.
  • If adding REX, wire to your access control panel per required input type.

What’s Included

MLRK1-YAL6 motor kit with MM4S module, hardware, and installation instructions with built-in REX.
