Command Access

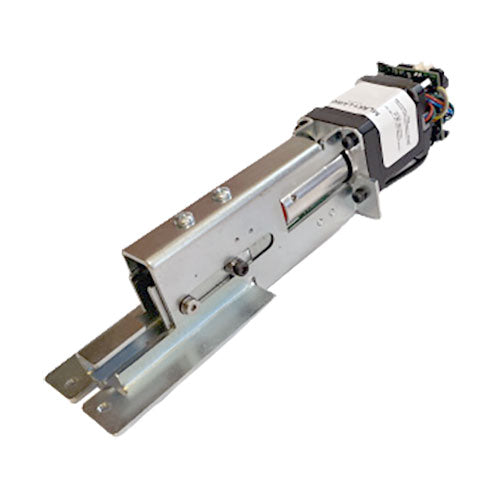

Command Access MLRK1-HAG Motorized Latch Retraction Kit — For Hager 4500/4600 (Field Install, UL, 3-Year Warranty)

Command Access MLRK1-HAG Motorized Latch Retraction Kit — For Hager 4500/4600 (Field Install, UL, 3-Year Warranty)

$495.00 USD
$495.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade Hager 4500/4600 Exit Devices to Motor-Driven Latch Retraction

The Command Access MLRK1-HAG is a practical, field-install motorized latch retraction kit that converts Hager 4500 & 4600 exit devices (and select equivalents) from mechanical to electrified pullback while maintaining UL listings. The kit features Push-to-Set (PTS) one-touch fine adjustment and the MM5 Smart Module with onboard diagnostics. Fast, quiet, smooth, and strong— backed by a 3-year “no hassle” warranty.

Why installers choose MLRK1-HAG

  • Quick retrofit — clean field installation with minimal modification.
  • PTS one-touch post-install fine adjustment (≈ 1/4").
  • MM5 Smart Module with onboard diagnostics and audible feedback.
  • Standard-torque mode capable of pulling difficult/tall vertical-rod doors.
  • Electric dogging rated for continuous duty; auto re-engages if the pushpad is pulled.
  • Built-in REX for request-to-exit integration.
  • UL Listed and supported by a 3-year warranty.

Compatibility

Works with Hager 4500/4600 and select equivalents: IDC 8000, LSDA 9000 R/V, PDQ 6200, Stanley QED 1/2000, and Lawrence 8000 devices.

Always verify exact model/handing, listings, and AHJ requirements for your project.

Specifications

Voltage Range 24–28 VDC (over-voltage protection: unit shuts down > 28 VDC)
Current (Standard) Peak ≈ 900 mA; Hold ≈ 215 mA
Control Module MM5 Smart Module with onboard diagnostics
Modes Standard-torque (energy-conscious) with capability for tough doors
PTS Adjustment ≈ 1/4″
Request-to-Exit Built-in REX
Wire Run Up to 300′ with 18 AWG
Cutdown Details 36″ & 48″ rails — minimum 8.5″ filler plate required
Duty Rating Electric dogging rated continuous; auto re-engage if pushpad is pulled
Listings UL Listed
Warranty 3-Year “No Hassle” Warranty

Installer Notes

  • Confirm device series/equivalent, handing, and rail cut length before energizing.
  • Use a regulated 24 VDC supply sized for inrush; verify 24–28 VDC at the rail under load.
  • Route cabling to avoid pinch points in the rail and hinge side; secure the raceway.
  • If adding REX, wire to your access control panel per required input type.

What’s Included

MLRK1-HAG motor kit with MM5 module, hardware, and installation instructions with built-in REX.
