• Field-install Command Access MLRK1-COR motorized latch retraction kit for Corbin Russwin ED4000/ED5000 and Accentra/Yale 7000 exit devices; PTS, optional REX, MM4S module.
1 1

Command Access

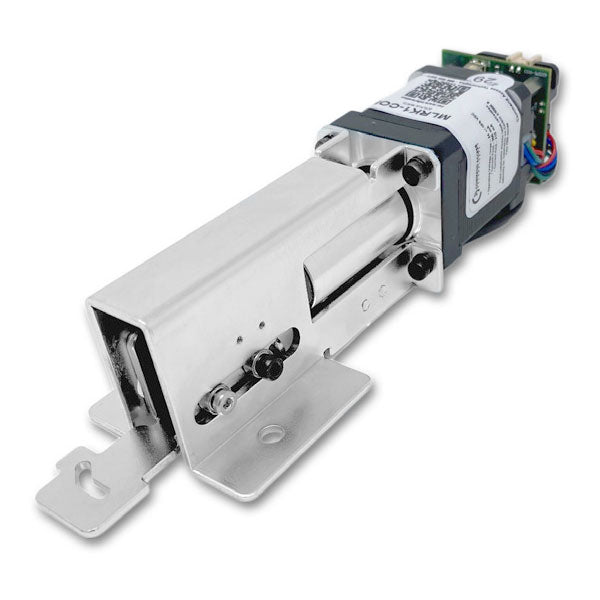

Command Access MLRK1-COR Motorized Latch Retraction Kit — For Corbin Russwin ED4000/ED5000 & Accentra/Yale 7000 (Field Install, UL, 3-Year Warranty)

Command Access MLRK1-COR Motorized Latch Retraction Kit — For Corbin Russwin ED4000/ED5000 & Accentra/Yale 7000 (Field Install, UL, 3-Year Warranty)

$495.00 USD
$495.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade Corbin Russwin ED4000/ED5000 & Accentra/Yale 7000 to Motor-Driven Latch Retraction

The Command Access MLRK1-COR converts Corbin Russwin ED4000/ED5000 and Accentra (formerly Yale) 7000 Series exit devices from mechanical to electrified pullback while maintaining listings. The kit retracts the latch and pushpad for electronic dogging and includes Push-to-Set (PTS) fine adjustment plus the MM4S Smart Module for onboard diagnostics. UL Listed and backed by a 3-year “no hassle” warranty.

Why installers choose MLRK1-COR

  • Fast, quiet, smooth & strong motor performance.
  • True field retrofit — clean install with a simple wire raceway.
  • PTS post-install fine adjustment (≈ 1/4").
  • MM4S Smart Module with onboard diagnostics & audible feedback.
  • Two power profiles: low-current standard or field-switchable High-Torque.
  • Pushpad retraction enables electronic dogging (push/pull) for as long as desired.
  • Long wire runs up to 300′ with 18 AWG for centralized power supply placement.
  • Electric dogging continuous-duty; auto re-engages if the pushpad is pulled.
  • Built in REX

Compatibility

Works with all Corbin Russwin ED4000/ED5000 and Accentra/Yale 7000 Series exit devices.

Specifications

Voltage Range 24–28 VDC (over-voltage protection: unit shuts down > 28 VDC)
Current (Standard) Peak ≈ 900 mA; Hold ≈ 215 mA
Control Module MM4S Smart Module with onboard diagnostics & audible feedback
Modes Standard (low current) or High-Torque (field switchable)
PTS Adjustment ≈ 1/4″
Request-to-Exit Built-in REX kit
Wire Run Up to 300′ with 18 AWG (two conductors)
Cutdown Details 36″ – cut 4″ from end cap; 48″ – cut 10″ from end cap
Duty Rating Electric dogging rated continuous; auto re-engage if pushpad is pulled
Listings UL Listed
Warranty 3-Year “No Hassle” Warranty

Installer Notes

  • Verify device series/handing and rail cut length before energizing.
  • Use a regulated 24 VDC supply sized for inrush; confirm 24–28 VDC at the rail under load.
  • Route cabling to avoid pinch points; secure the raceway and strain relief.
  • Centralize the power supply near the access control panel when beneficial.
  • Integrate the optional REX contacts per your panel’s input requirements.

What’s Included

MLRK1-COR motor kit with MM4S module, hardware, and installation instructions with built-in REX.
