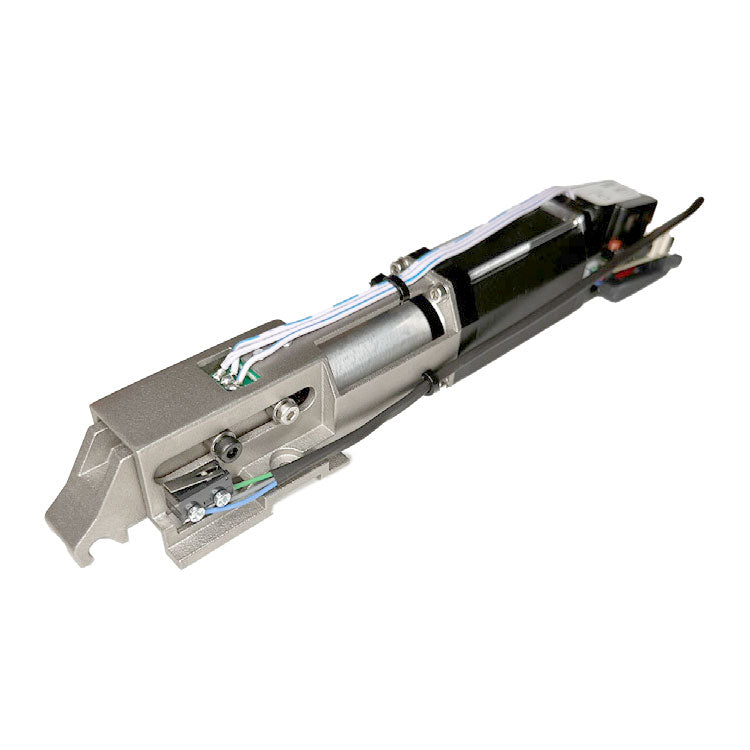

Command Access MLRK1-AR Motorized Latch Retraction Kit — For Adams Rite 8200/8400/8600/8800/P8800 (Field Install, UL, 3-Year Warranty)

Command Access MLRK1-AR Motorized Latch Retraction Kit — For Adams Rite 8200/8400/8600/8800/P8800 (Field Install, UL, 3-Year Warranty)

$495.00 USD
$495.00 USD
Sale Sold out
Shipping calculated at checkout.

Upgrade Adams Rite 8200/8400/8600/8800/P8800 Exit Devices to Motor-Driven Latch Retraction

The Command Access MLRK1-AR is a robust, field-install motorized latch retraction kit for Adams Rite 8200, 8400, 8600, 8800, and P8800 Series exit devices. It converts a mechanical rail to an electrified pullback solution while maintaining listings. Installation is clean—the only hole to drill is the wire raceway. One-touch PTS (Push-to-Set) simplifies fine adjustment, and a built-in REX is available on all units. Powered by the MM5 Smart Module for onboard diagnostics and efficient power management. UL Listed with a 3-year “no hassle” warranty.

Why installers choose MLRK1-AR

  • True field retrofit — raceway drilling only; minimal rail modification.
  • Fast, quiet, smooth & strong motor performance.
  • One-touch PTS post-install fine adjustment (≈ 1/4").
  • MM5 Smart Module with onboard diagnostics and audible feedback.
  • Standard-torque mode capable of pulling difficult/tall vertical-rod doors.
  • Electric dogging rated for continuous duty; auto re-engages if the pushpad is pulled.
  • Built-in REX for request-to-exit integration.
  • UL Listed and backed by a 3-year warranty.

Compatibility

Works with all Adams Rite P8800/8800/8600/8400/8200 series exit devices.

Specifications

Voltage Range 24–28 VDC (over-voltage protection: unit shuts down > 28 VDC)
Current (Standard) Peak ≈ 900 mA; Hold ≈ 215 mA
Control Module MM5 Smart Module with onboard diagnostics
Modes Standard torque; energy-conscious yet capable for tough doors
PTS Adjustment ≈ 1/4″
Request-to-Exit Built-in REX kit
Wire Run Up to 300′ with 18 AWG
Cutdown Details 36″ – 0.75″; 42″ – 6.75″; 48″ – 5″
Duty Rating Electric dogging rated continuous; auto re-engage if pushpad is pulled
Listings UL Listed
Warranty 3-Year “No Hassle” Warranty

Installer Notes

  • Verify device series, handing, and cut length before energizing.
  • Use a regulated 24 VDC supply sized for inrush; confirm 24–28 VDC at the rail under load.
  • Route cabling to avoid pinch points in the rail/hinge area; secure the raceway.
  • If adding REX, wire to your access control panel per required input type.

What’s Included

MLRK1-AR motor kit with MM5 module, hardware, and installation instructions w built-in REX.

*Always verify model compatibility, listings, and AHJ requirements for your project.
