ASSA ABLOY

HES 5000C Electric Strike Complete Pac by ASSA ABLOY

HES 5000C Electric Strike Complete Pac by ASSA ABLOY

Regular price $134.43 USD
Regular price Sale price $134.43 USD
Sale Sold out
Shipping calculated at checkout.

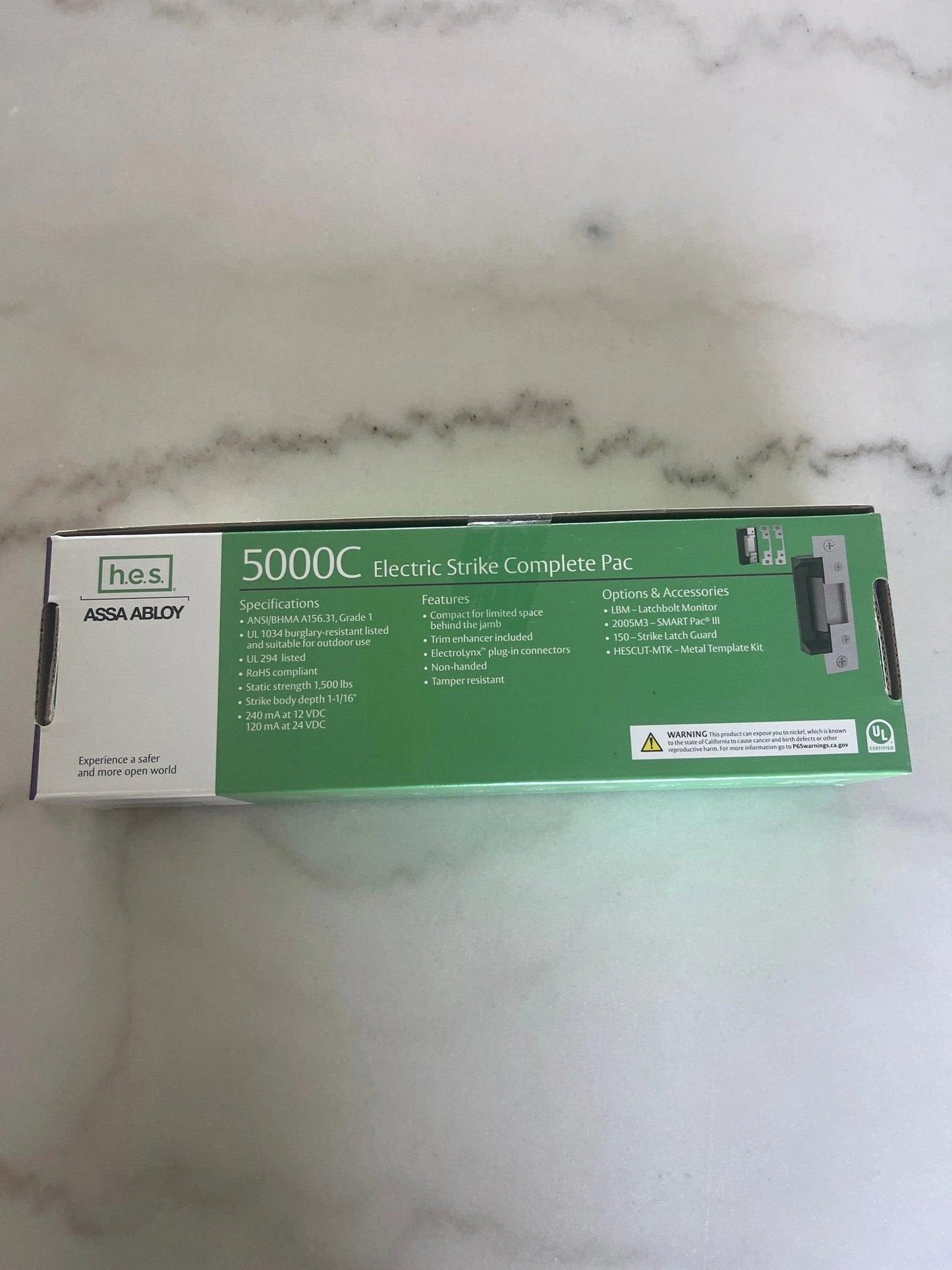

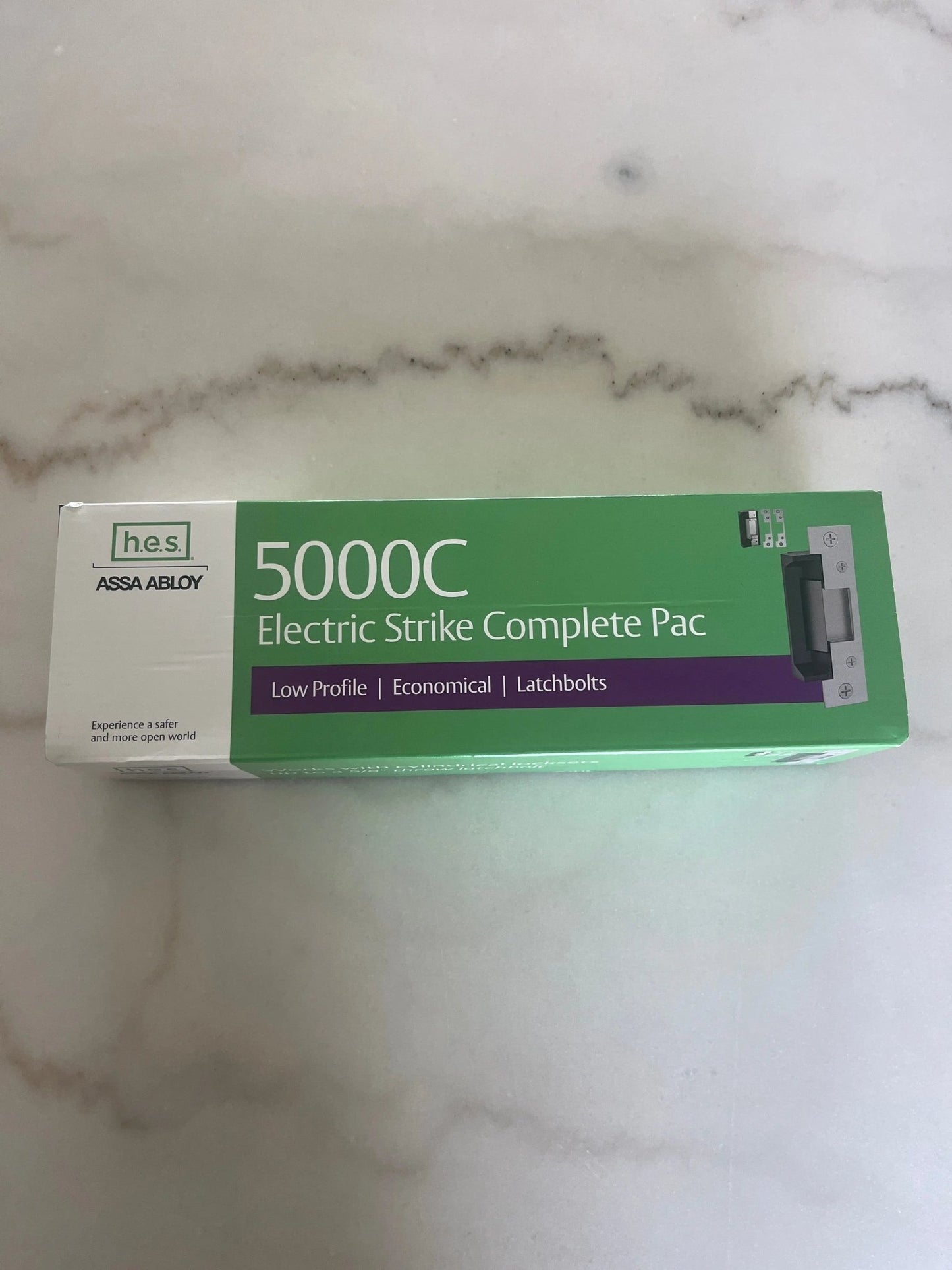

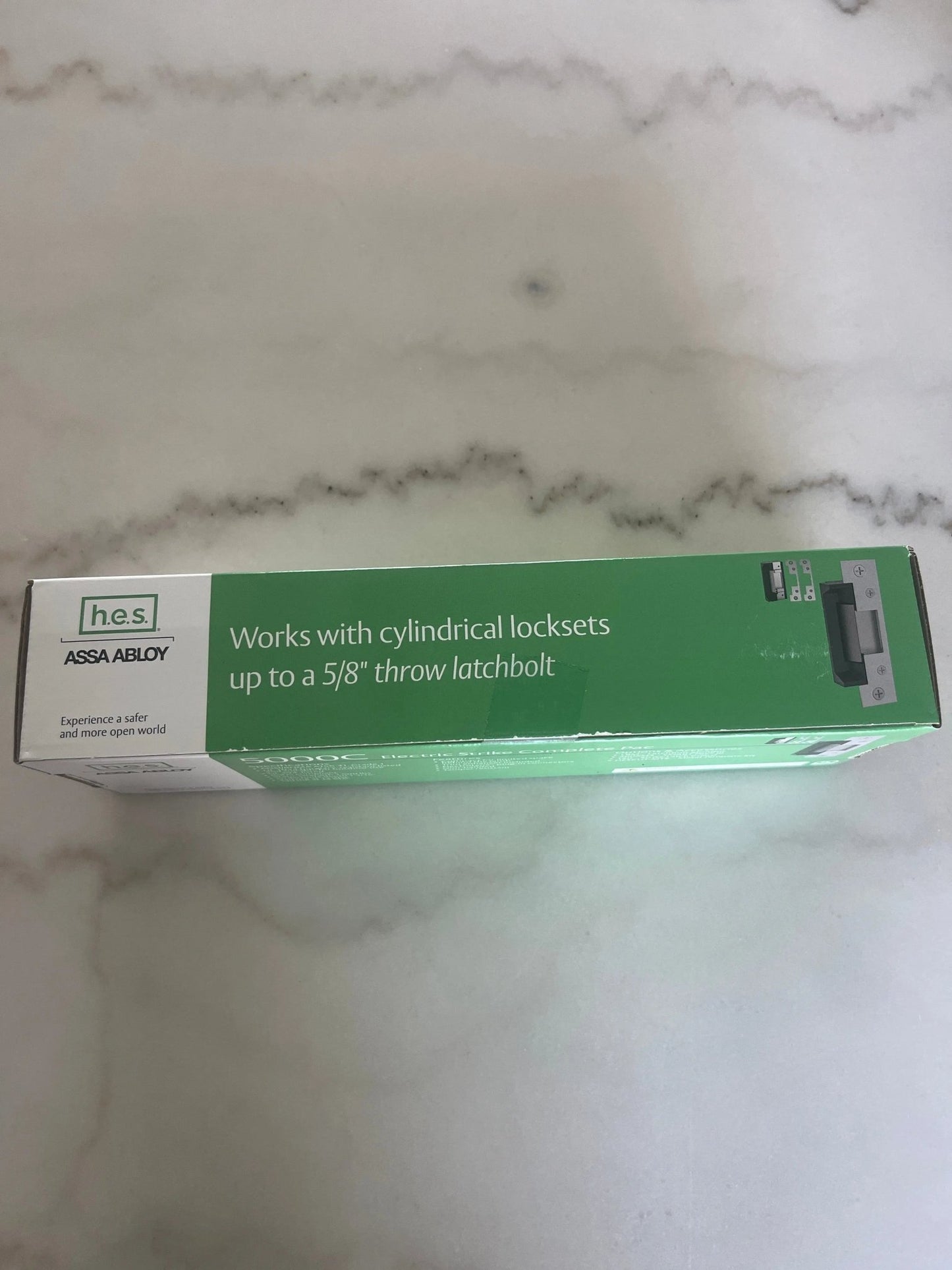

HES 5000C Electric Strike Complete Pac by ASSA ABLOY

ASSA ABLOY HES 5000C Electric Strike Complete Pac

The 5000C has a compact, low profile design for easy installation.

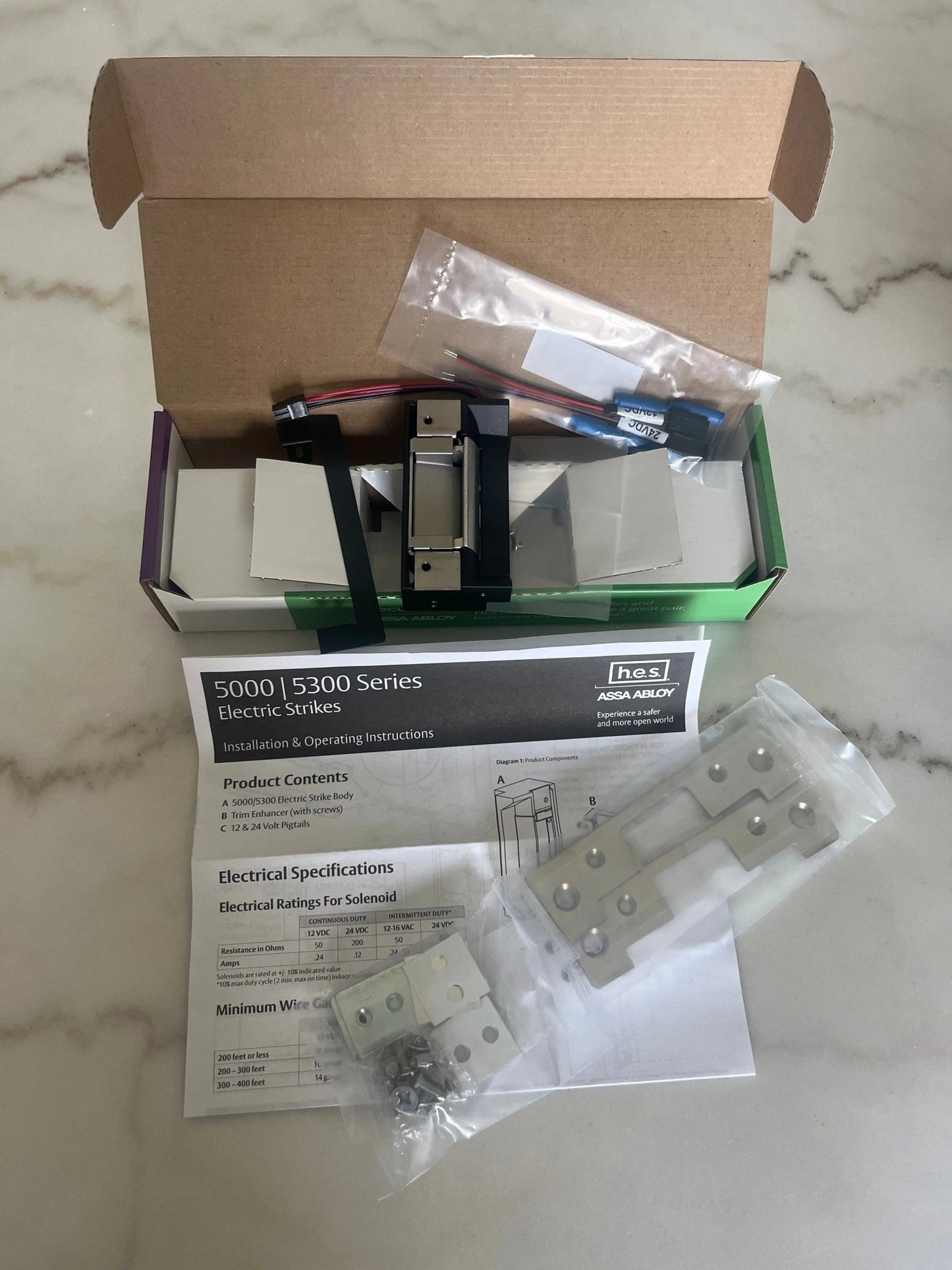

Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5000C includes a 5000 strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.

Faceplates & Accessories, Documents, Certifications & Listings

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

The 5000 Series is also available in a Complete One Box Solution:

Frame application

  • Metal
  • Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor

The Grade 1, low profile solution for cylindrical locksets. Low Profile • Strike body depth 1-1/16" • Compact Design • Ideal for applications with limited space behind the jamb Exceeds Every Standard • UL 1034, burglary-resistant listed and suitable for outdoor use • UL 294 listed • Endurance 1 million cycles Tested for Durability • ANSI/BHMA A156.31, Grade 1 • Static strength 1,500 lbs, Dynamic strength 70 ft lbs • Endurance 1 million cycles
